Tuesday 10 November 2015

STP-275c Dual Diaphragm

We have another modification to out "STP-275" project. This is the last modification of these unbalanced microphone. The project is end now.
Few pcs are left for "STP-275c", "STP-275c" and "STP-275 dual".







You can click to enlarge images.

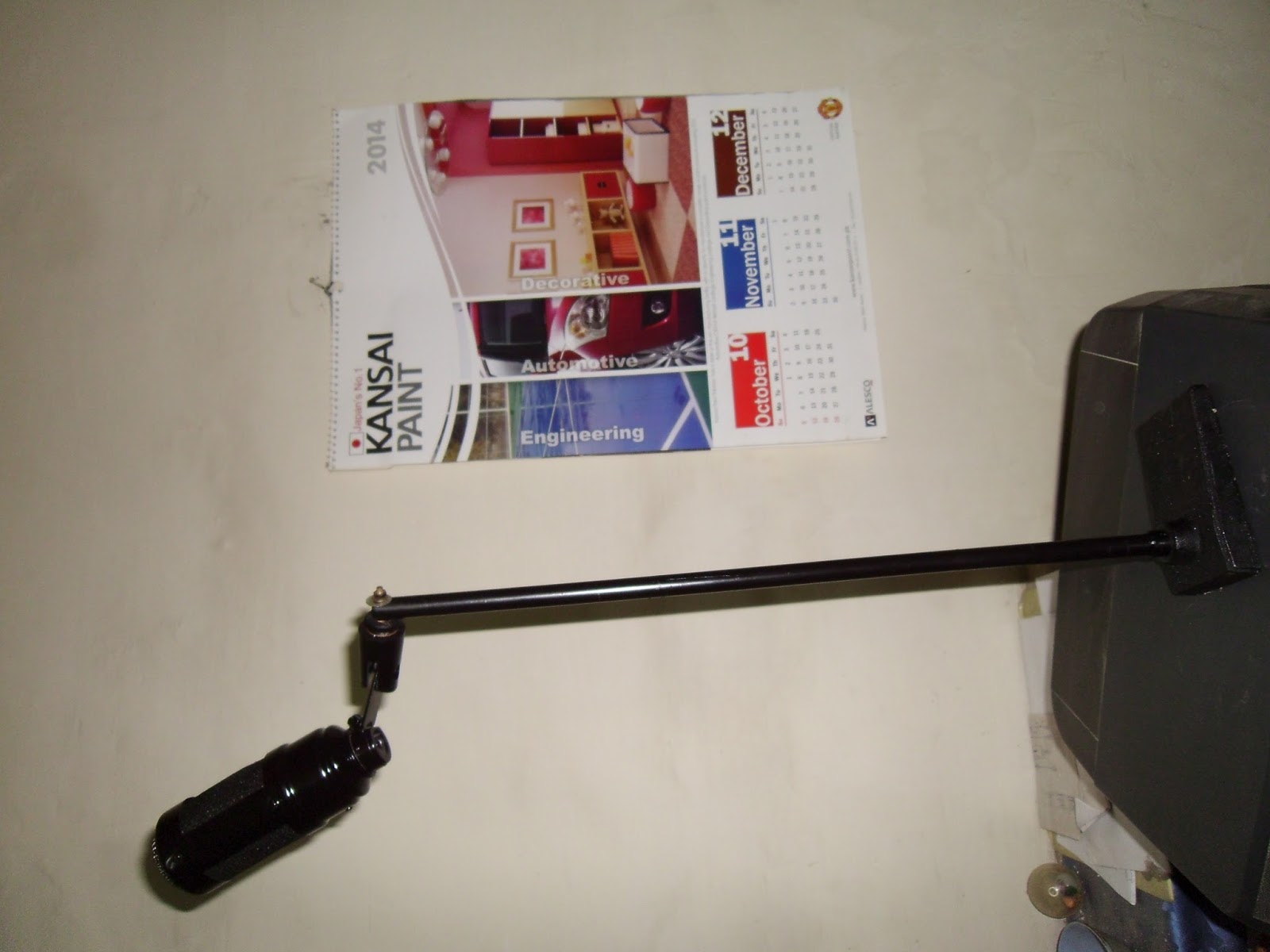

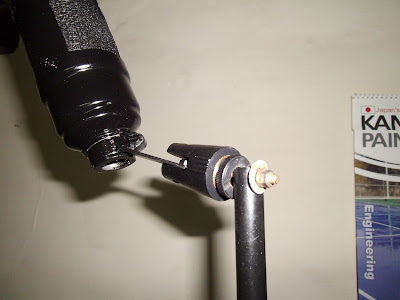

You can clearly see the change. That it has a fixed shock mount with it. And the design is properly finished.
We have no pcs left now all are sold.

Saturday 10 October 2015

STP-275d (New Microphone Designs)

This is an update regarding new microphone prepared here. Check out the pictures of these both design.
These both are true capacitor microphone. They required XLR input of a mixer/interface with 48v phantom power. Check out the package below:








Specification are same as out previous posts for "STP-275d".

Microphone is colored with a spray Gun for more shining and long time beauty.
But i think its still not good because i don't know mechanical work a lot. But overall its done and working and that's what i wanted.

Next time i wouldn't try this cylindrical design i might design


PRICE : 6500/- PKR (250 PKR Delivery Charges)







Next time i'll do something with these shapes of rectangular pipes. Lets see what happens next.




Thursday 27 August 2015

STP-275c (Silver Color)

Same specification as our "STP-275c". It only differ in diameter and design.
Its in silver and golden color. Its is slim as the other versions.



Availability : In Stock
Price : $50 USD - 3500 PKR + 250 Courier Charges
Contact Us for more details.


STP-MX-399

This is a mixer device that has a built in low noise, high gain preamplifier for microphones and other input. It supports analog input signals and then provides analog output signals. It is suitable for "PCI Studio Soundcard" such as "Creative SoundBlaster", "M-Audio Delta, Audiophiles" etc.




It gives a strong amplified output signals 75db-80db to the Line in of PCI cards.
It has an automatic imdenace detector so many devices can be plugged into it.

XLR jack is for all STP microphones
1/4 is for all Dynamic Microphone & Instruments
2 volume knobs for controlling headphone and monitor/speaker realtime.

Monday 3 August 2015

STP-275C

We made a new "Studio Microphone" which is capable of recording high quality audio. It can be used for vocals, instruments and drums etc. You can also use it for other purpose like interview recordings, wildlife recordings and tutorial recordings.
Microphone is driven by FET BF245C and 2SC9013 general purpose npn transistor.




It is made up of metal housing and perfectly ground looped. You can see that its all black. But this is the first design. However we also have these microphone in other colors.


How does it work ?

It has a 3pin out XLR JACK. You can either connect it to mixer or interfaces that has 48v phantom power because stp-275c are the phantom powered microphones and so, below range of 45-48v stp-275c aren't gonna work.

Phantom Power Supply

STP-PHP-1M

THIS IS OUT NEW PHANTOM POWER SUPPLY BOX AND PRE-AMP. THIS ISN'T JUST A PRE-AMP THAT HAS ONLY PHANTOM POWER BUT IT ALSO HAS A BUILT IN MIXER THAT CAN MIX GUITAR, PLAYBACK, MICROPHONE SIMULTANEOUSLY. YOU CAN TAKE MIXED OUTPUT THROUGH LINE IN FOR LIVE PERFORMANCES. RATHER THAN THAT YOU CAN ALSO USE IT FOR HOME RECORDING BUT IN THIS CASE YOU NEED TO USE INSTRUMENT AND MICROPHONE SEPARATELY ONE BY ONE.







IT WORKS WITH ITS 48V DC ADAPTER.

PRICE OF MICROPHONE IS 4500/- PKR
PRICE OF PRE-AMP IS 3000/- PKR
PRICE OF WHOLE PACKAGE IS 7000/- PKR

Thursday 2 July 2015

STP-275D

Studio Microphone


We have made a new "Studio Microphone" which is capable of recording high quality audio. It can be used for vocals, instruments and drums etc. You can also use it for other purpose like interview recordings, wildlife recordings and tutorial recordings.
Microphone is driven by FET BF245C and 2SC9013 general purpose npn transistor.




It is made up of metal housing and perfectly ground looped. You can see that its all black. But this is the first design. However we also have these microphone in other colors.


SAMPLES AUDIO :


How does it work ?

It has a 5pin out option. But that is a midi jack. MIDI jacks has different feature that is why we used them in our 50 microphones stp-275d project. It works with 3.5mm  jack that can be plugged direct into PC microphone port. Your PC can power up this microphone. For other special PC that doesn't have this option you can use PPB device (Phantom Power Box Device).

PPB (Phantom Power Box)

We made a box for it " that is used to obtain the balanced output/stereo out for PC, interfaces etc.

This is not just a power supply of microphone but it has option to plug your headphone into it to obtain the stereo out for latest PC sound-card. You can listen to the real-time microphone audio and audio coming from PC and you can adjust the volume for both separately.
There is a push button to turn it on. You connect your mic and headphone into it. And then connect its headphone out and mic out to PC headphone & mic sound-card ports respectively.

Original Package Details

Original package contains device, microphone. cables, battery, power adapter.
Looks at the original box.

At the right side in the bubble bag there is microphone. Beside the microphone there is its cable which is 5 pins din midi to 3.5mm stereo male jack. And you can see the passive mixer device which also serves as PPB for microphone.You can see the power adapter cable of battery and 9v battery. Below this battery and the bo\x there are two more additional cable for device. Both are 3.5mm stereo male to 3.5mm stereo male. This device can also be powered by 9v adapter.

COST/PRICE/RATE

We are only offering complete package for $35 USD
5000 Rs - PKR (Additional SoundCard for PC Free)
Deliver All Over The World.
Contact Us for more info.


Friday 22 May 2015

STP-TD-R7

Protection Switch For Home Electrical Equipments

This is a "Time Delay" switch box. Can be used for 220v AC. When you plug the adapter into AC socket it turns on the switch (Relay) that is built inside it after 2min. This can be used for the load of 1000W. So, it is suitable for home use to protect our precious and sensitive electrical devices like LED TV, Computers, Printers, Refrigerators, Deep Freezers etc.

The exact calculated time is about 1:59


Switching Power of Relay

DC 6-12v ~ 30A
AC 220v ~ 30A Switching



Board contains its own power supply of 6v~600mA for powering the timer kit.
Timer kit is based on 555 timer. The 555 consumes more energy so, we decided to build it with 7555. Hence all of our switches are based on 7555 Timer IC.
PCB has wide traces where the current AC with high voltage will pass.
The Wire we used (you can see in the picture above) can also support the load of 30A. So, everything is safe.

WORKING:

  • Connect your device in "STP-TD-R7" Socket.
  • Now plug the "STP-TD-R7" cable into your home indoor AC socket.
  • Now, Turn on the switch. You'll see the power LED will light.
  • Now everything is done, it will turn on your plugged device after 2mins.
  • When the socket of "STP-TD-R7" has current in its socket the other LED named as trigger will light up. This is the indication that the switch is on.
  • Just in case for sometime if you don't want to wait for two minutes you can press button that is with its socket. This will instantly switch on your plugged in device. This switch is named as reset.
  • To face all of the problem there is a fuse inside it which is very easy to replace.

This device is very useful for our "Electrical Equipments" and its 100% safe to use. It will protect your device from Electricity fluctuation which can damage our precious devices.
This is just a $8 device that can save a $10000 devices.

Availability : IN STOCK
SPECIAL DISCOUNTS FOR THE WHOLE SALE CUSTOMERS and SHOPE KEEPERS
